LEGO Digital Crawler with EV3 Controlled Gear Box

This LEGO remote controlled crawler uses a sequential gearbox from Sariel and a Mindstorms EV3 to control the car. The remote control used force feedback and offers proportional control over speed and direction. It also allows you to change gears and change the forward and backward drive. The two EV3 Mindstorms communicate using Bluetooth. The remote uses two rotation sensors to measure speed and direction.

The building instructions are available for LEGO Digital Designer and Stud.io. Please notice that I had to replace the 35188 Technic Changeover Rotary Catch with another gear in the digital model and I could also not include Mindsensors Glide Wheel Rotation Sensor. These bricks do not yet exist in digital form. I also put up the model are ReBrickable and the inventory there is almost complete. Feel free to also use different wheels. In the LDD model I also had to use other shocks.

Here is a video that explains the model’s function:

And here is the crawler in action:





3D LEGO Technic Connector

Connecting LEGO Technic beams in three dimensions remains a difficult task. While it has become easy to connect beams in one and two dimensions, it remains difficult to extend this to the third dimension.

I first designed a new LEGO Technic connector that features pins. The design was compact and stable, put the pins were too fragile. It was also very difficult to get the support material out from the holes.

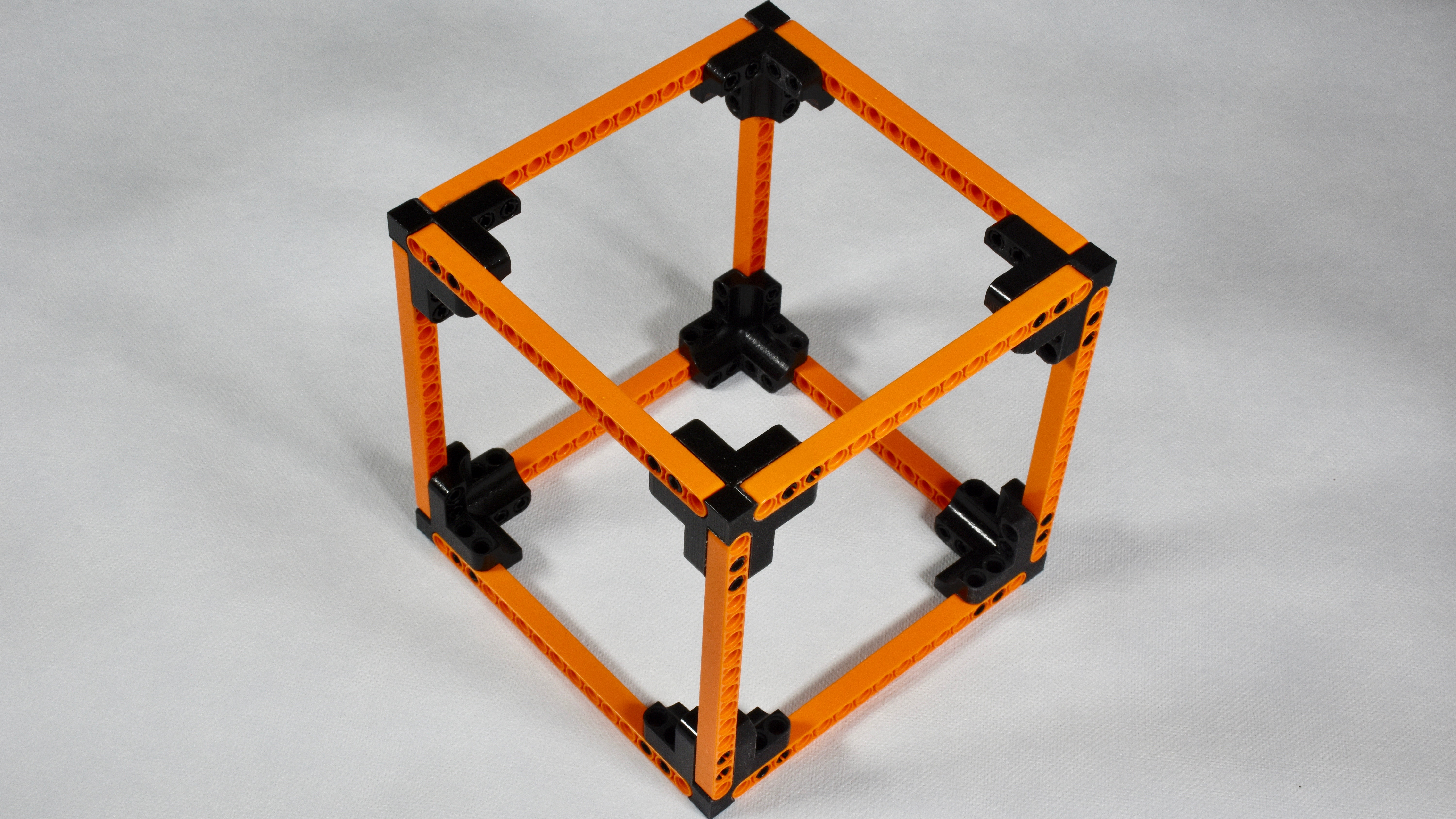

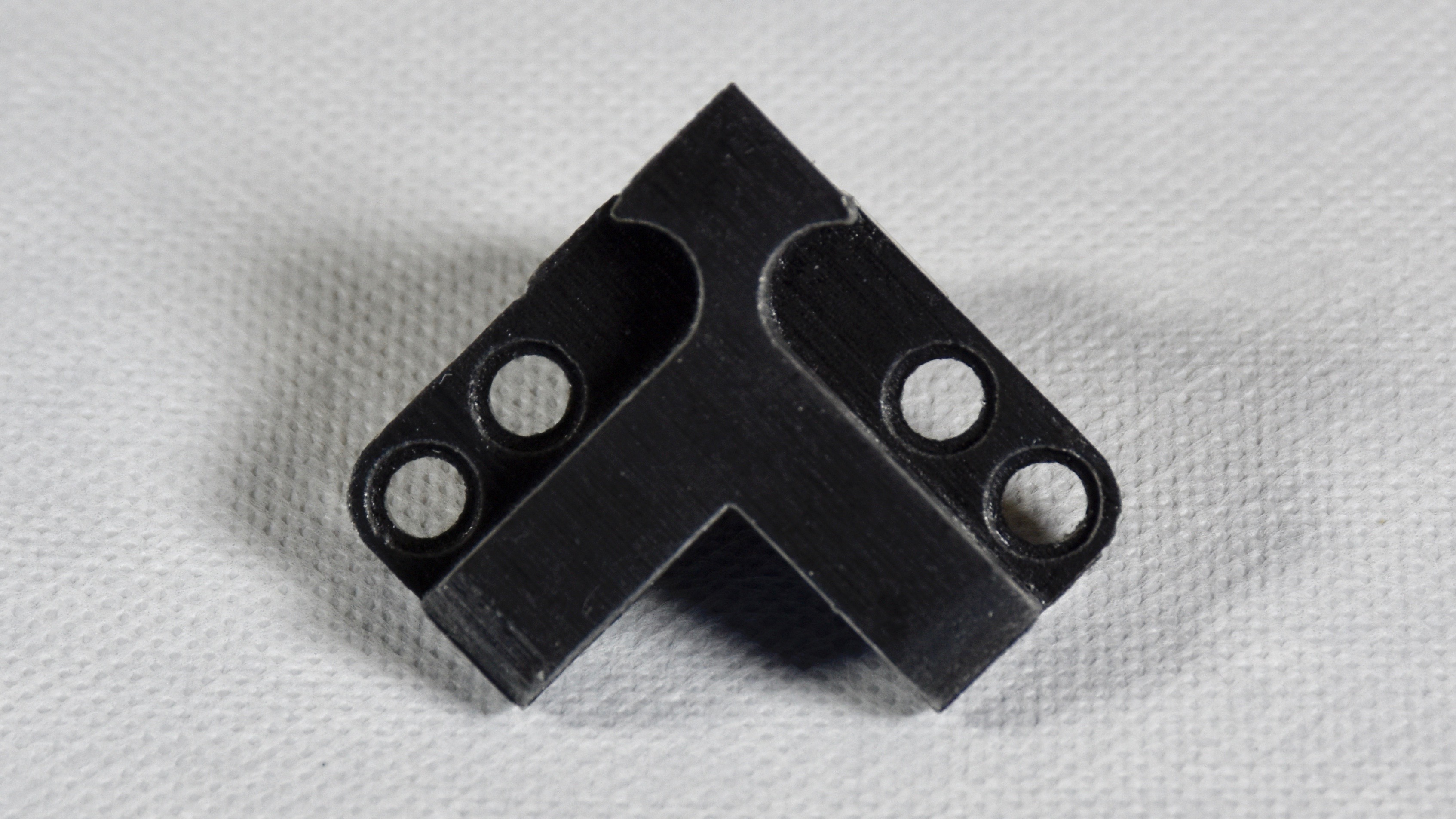

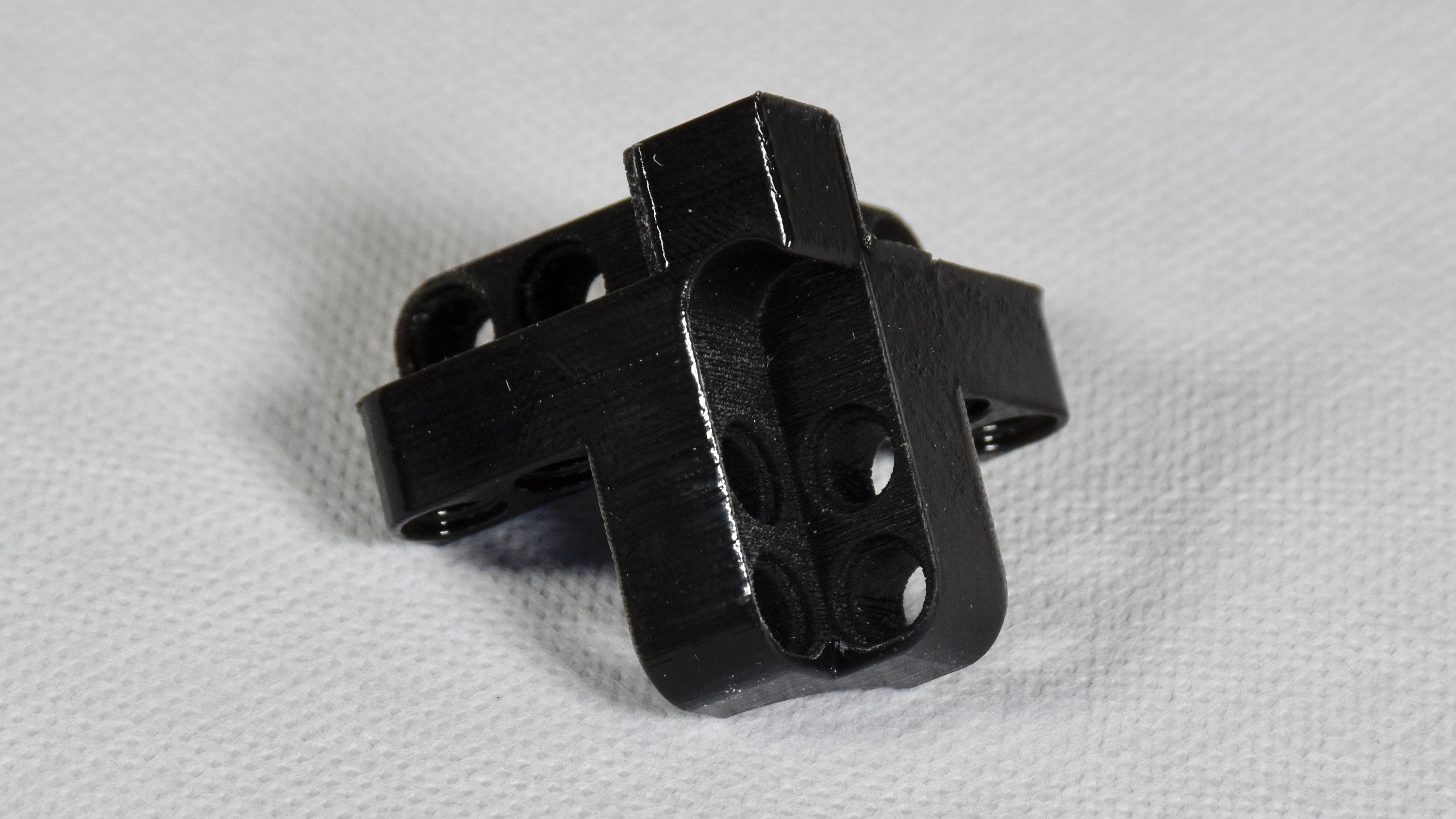

My second design had no pins but still the option to firmly hold a technic beam. With this new 3D printed corner part it is possible to build a perfectly stable cube with a minimum of parts. The additional holes provide options for further strengthening the cube or to connect other parts to the cube.

The CAD model is available from Autodesk and GrabCAD.





Building an off road car with LEGO Technic

It has long been a dream of mine to build a remote controlled LEGO car. LEGO has many Technic cars in their program that use the Power Functions to remote control certain functions, such as opening doors or lifting an arm. Power Functions use infrared light for communication between the sender and the receiver. In the past, LEGO also had remote controlled cars that use radio frequencies, which is much better, since it does not require a line of sight and has a much further reach.

Recently, LEGO released the 4×4 Crawler and it really triggered something inside of me. I ordered the set, but when it arrived I never put it together. I started to build my own cars right away. I looked for inspiration on the internet and found many great off road cars, trial trucks and multi purpose car technology. In particular the work Pawel “Sariel” Kmiec. Check out his book “The Unofficial LEGO Technic Builder’s Guide” or visit his website. LPE Power also has some wonderful instructions on how to build real car technology with LEGO. Continue reading “Building an off road car with LEGO Technic”
