Raspberry C64 Pi Computer
Running A Raspberry Pi 4 in a C64 case with fully functional keyboard and USB hub.

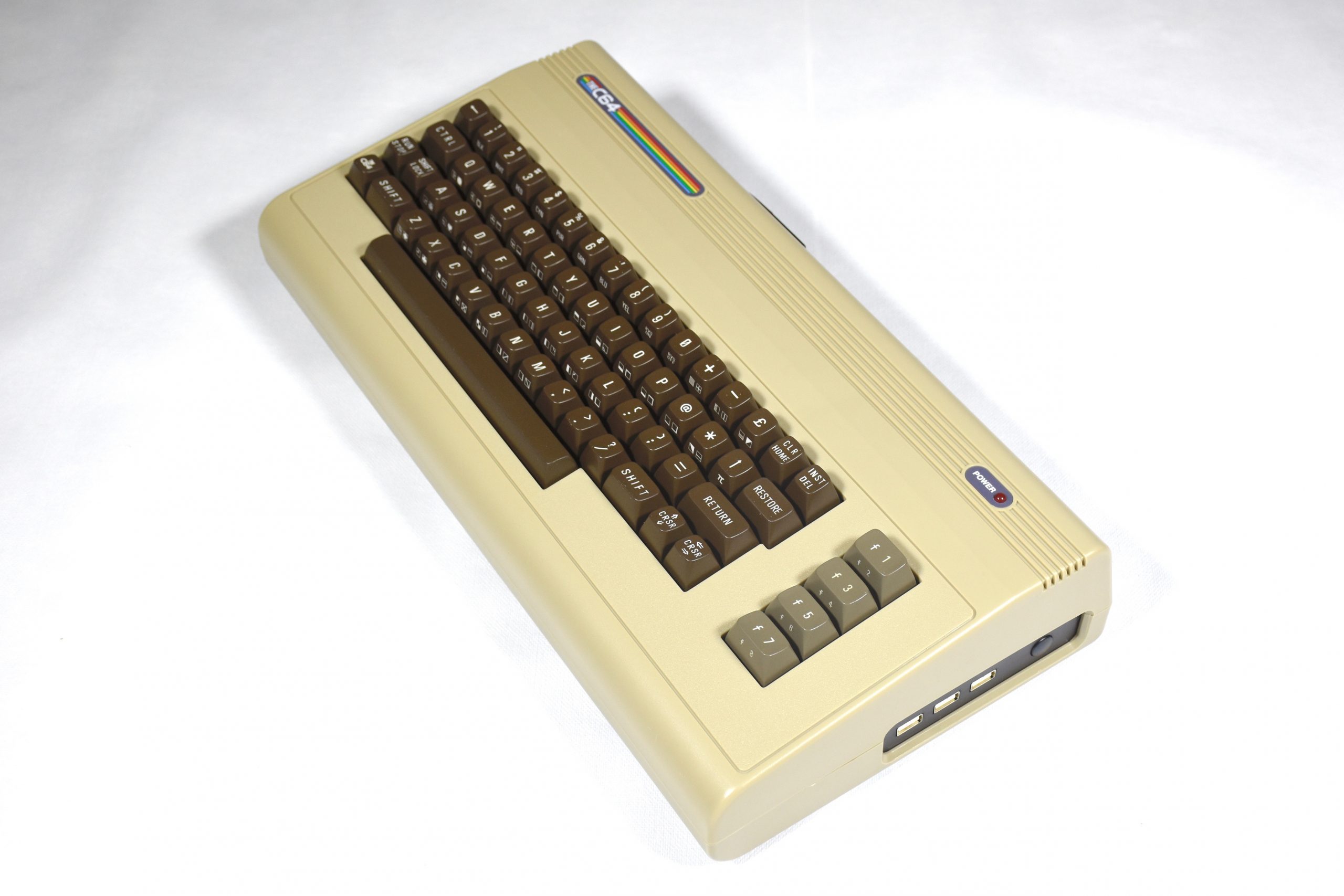

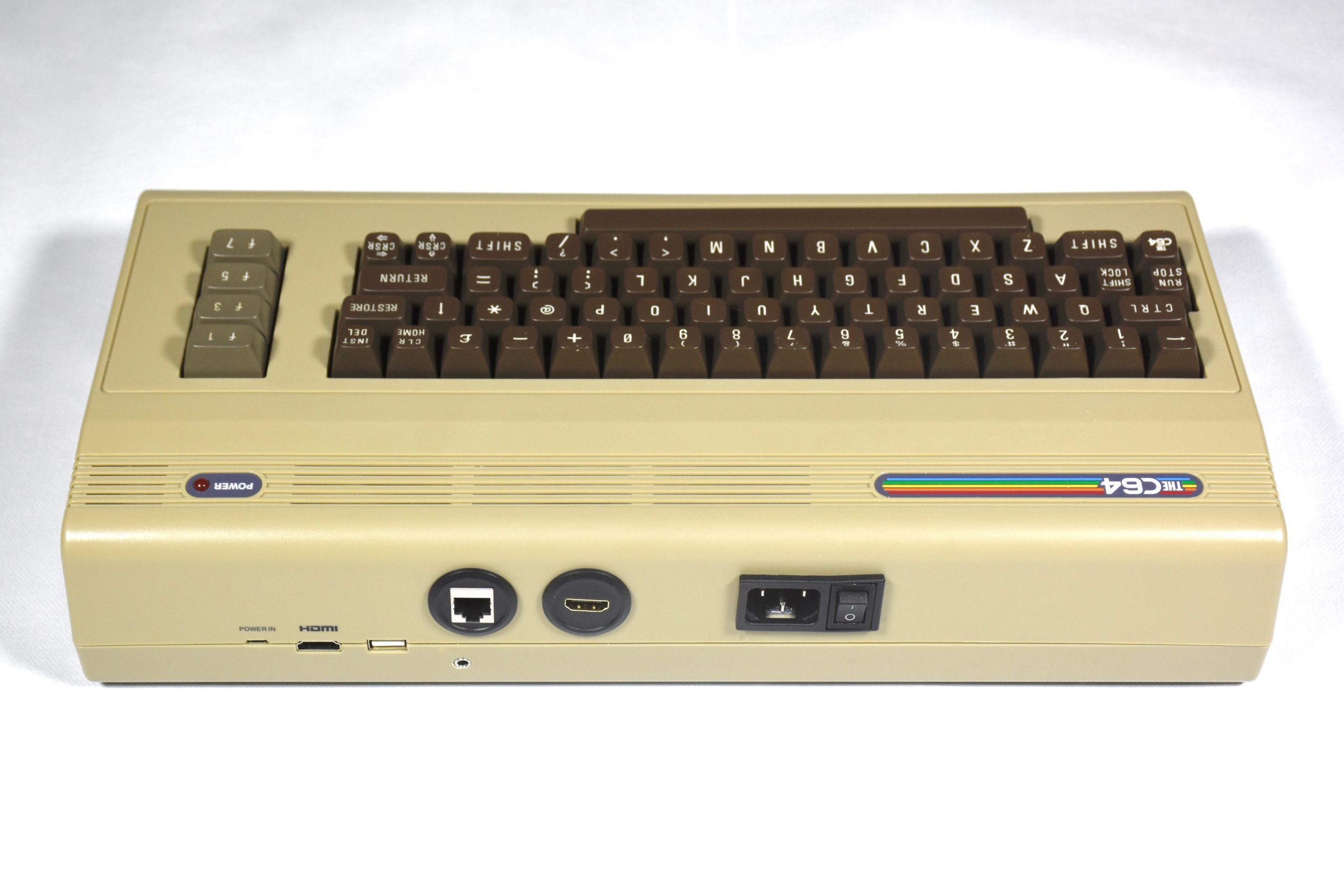

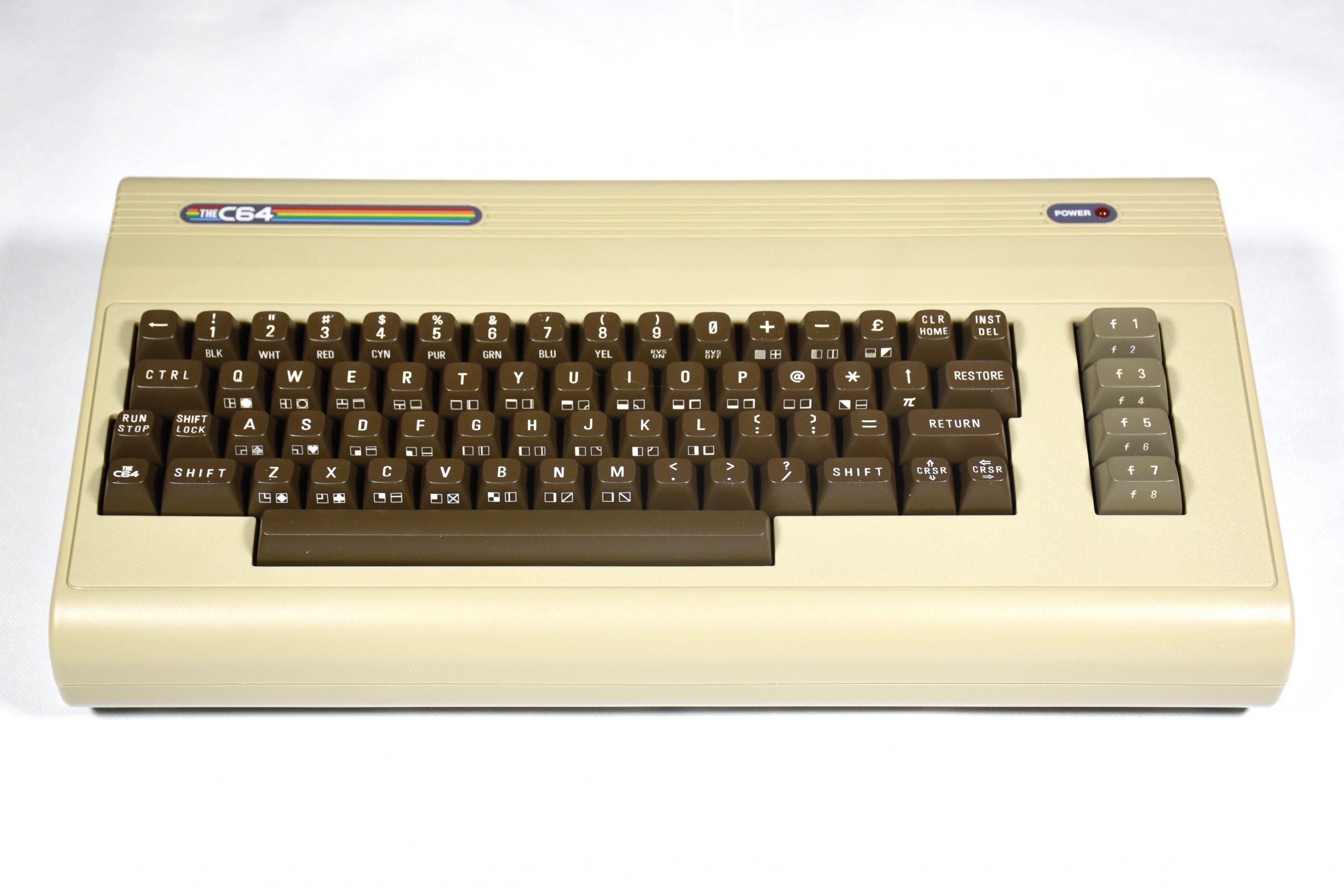

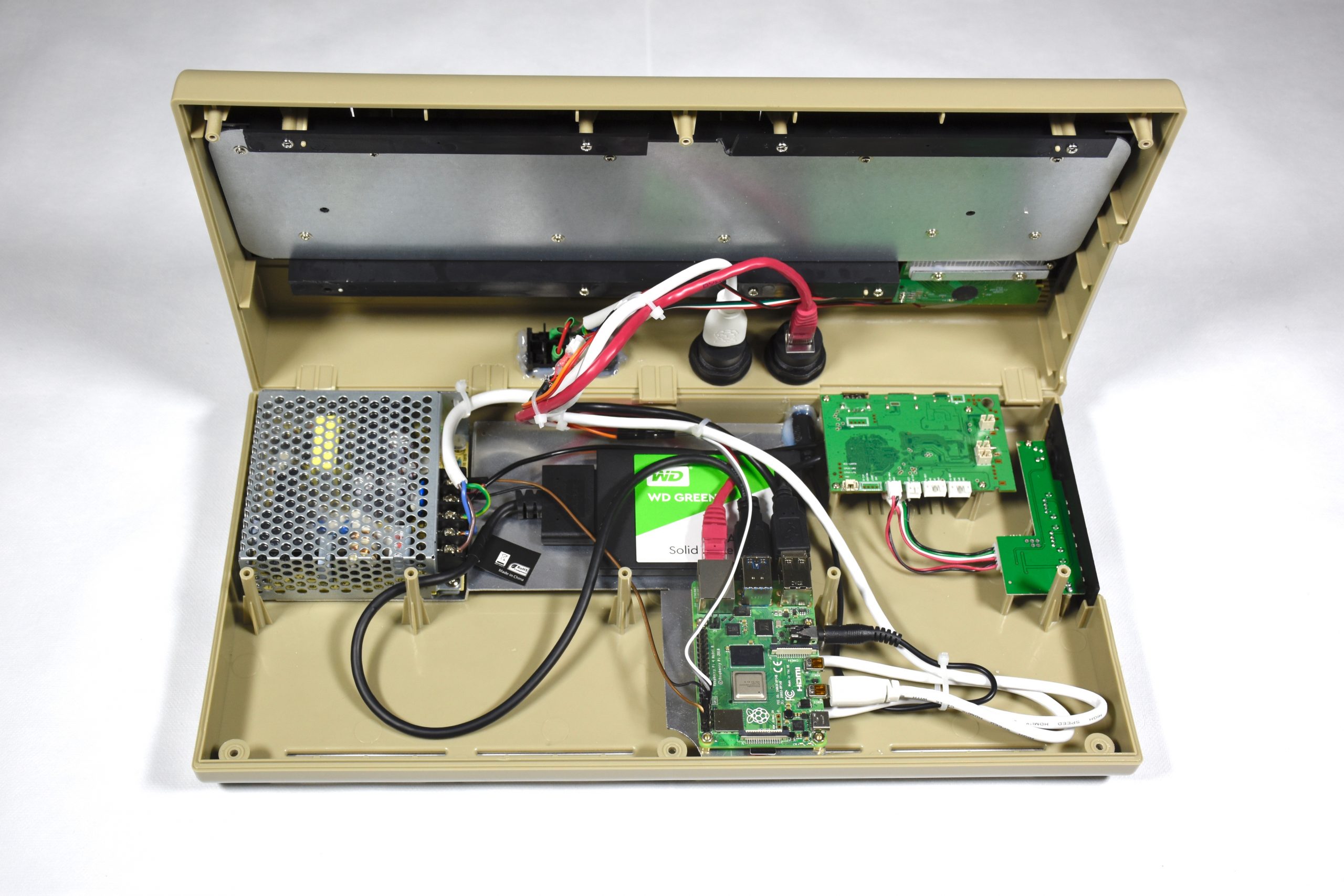

I integrated a Raspberry Pi 4 into a Commodore C64 Maxi case. The Pi uses the integrated keyboard and the USB hub. An integrated power supply provides power to both, the Pi and the C64, which now run in parallel. The Raspberry Pi boots from an internal SSD drive, turning this machine into a full desktop computer that can also run Retro Pi for true retro gaming.
Images
Parts List
- The C64 Maxi
- Raspberry Pi 4 with 4GGB RAM
- 2.5″ Western Digital 240GB SSD
- StarTech 2.5″ SATA to USB 3.0 Adapter
- Mean Well NES-35-5, 5V 7A, Power Supply
- Adafruit HDMI Round Panel Mount Plug
- Adafruit RJ-45 Ethernet Round Panel Mount Adapter Plug
- Adafruit Panel Mount Stereo Audio Extension Cable
- Raspberry Pi Micro HDMI to Standard HDMI Cable
- JST, PH, B4B, 4 Way, 1 Row, Straight PCB Header
- JST, PH, B2B, 2 Way, 1 Row, Straight PCB Header
- Bulgin BZM27/Z0000/53B Power Switch
Instructions
- Instructions on how to boot Raspberry Pi 4 from a USB drive.
- Installing Retro Pi
Technical Drawings
The technical drawings are available here.
raspberry-c64-pi-mounting-plate
